Download PDF
Warranty
There is a five-year warranty on your Sandberg product.
Please read the warranty terms and register your new Sandberg product at
https://www.sandberg.world/warranty
For information on handling electronic waste, see
https://www.sandberg.world/weee
https://helpdesk.sandberg.lt
Item no. 136-49
USB 3.2 Cloner & Dock for
M2 + NVMe + SAT
A
Made in China
Sandberg A/S
Bregneroedvej 133D
,
3460 Birkeroed, Denmark
www.sandberg.lt
USB 3.2 Cloner &
Dock for M2 +
NVMe + SA
T
A
Quick guide
136-49
www.sandberg.lt
Years
Warranty
Helpdesk
Quick guide
1. 3.5" / 2.5" SATA connector
2. 2280 disk
3. 2260 disk
4. 2242 disk
5. 2230 disk
6. NVMe M-key connector
7. DC for power supply
8. Power button
9. Clone button
10. Power indicator
11. SATA disk indicator
12. NVMe SSD indicator
13. USB-C (connect to the
data port of PC)
14. Clone progress indicator
15. Clone setting key
Product preview
2
80MM
60MM
42MM
30MM
1
2
3
4
5
6
USB-C
7
8
9
10
11
12
13
15
14
Quick guide
Connection
3
SATA HDD/SSD
M.2 NVMe SSD
45°
Quick guide
Connection
4
USB data cable
Power cable
USB-A
USB-C

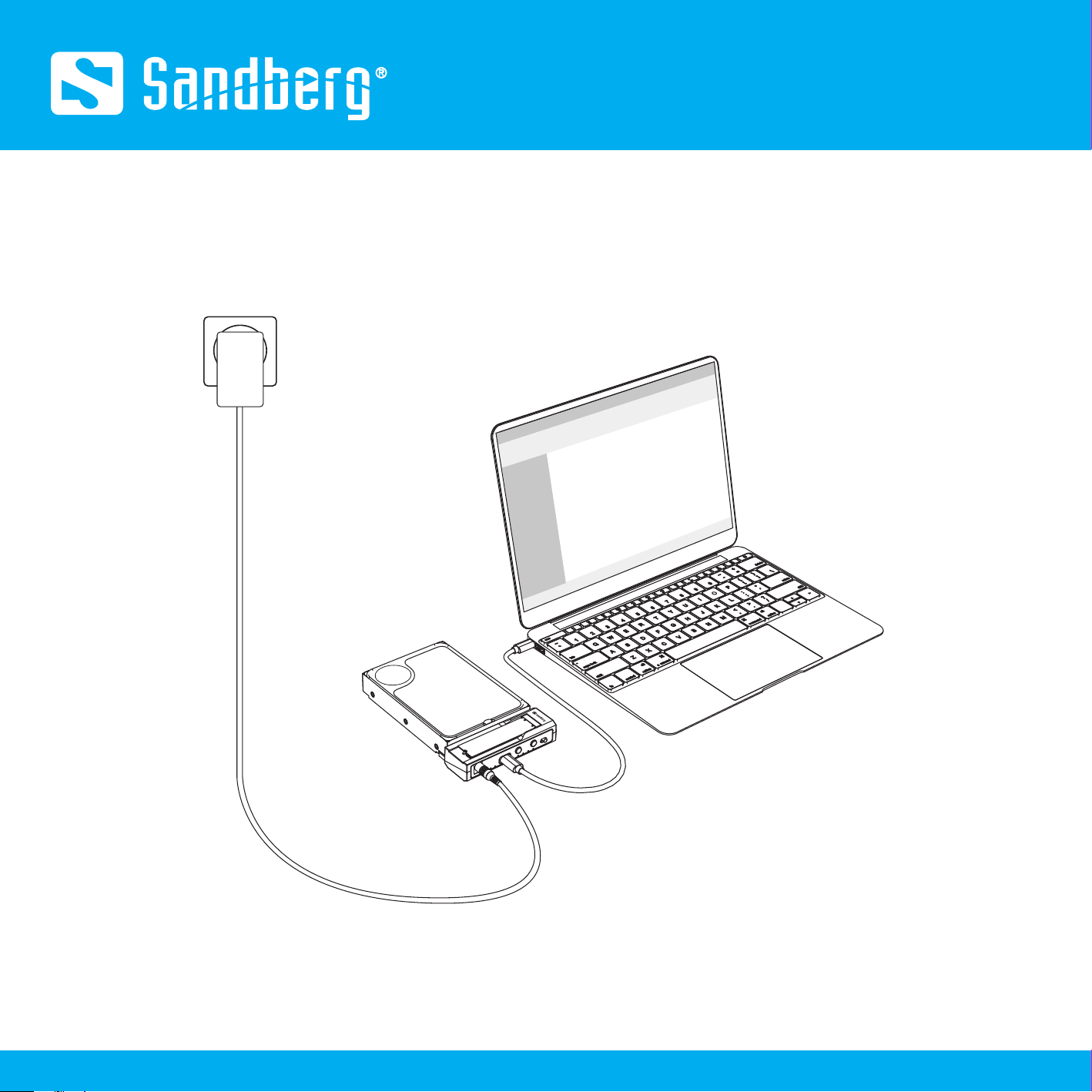

136-49 New Drive
Read and write to the disks connected to the dock.
NOTE:
Brand new drives must be formatted before use.
Quick guide
Dock function
5
Quick guide
1.
Offline clone
Connect to power
NOTE:
Before starting clone process, please make sure that the target disk has greater capacity than the source disk.
USB
-C
6
USB data cable
You must disconnect the dock from your PC when you perform an offline clone.
Quick guide

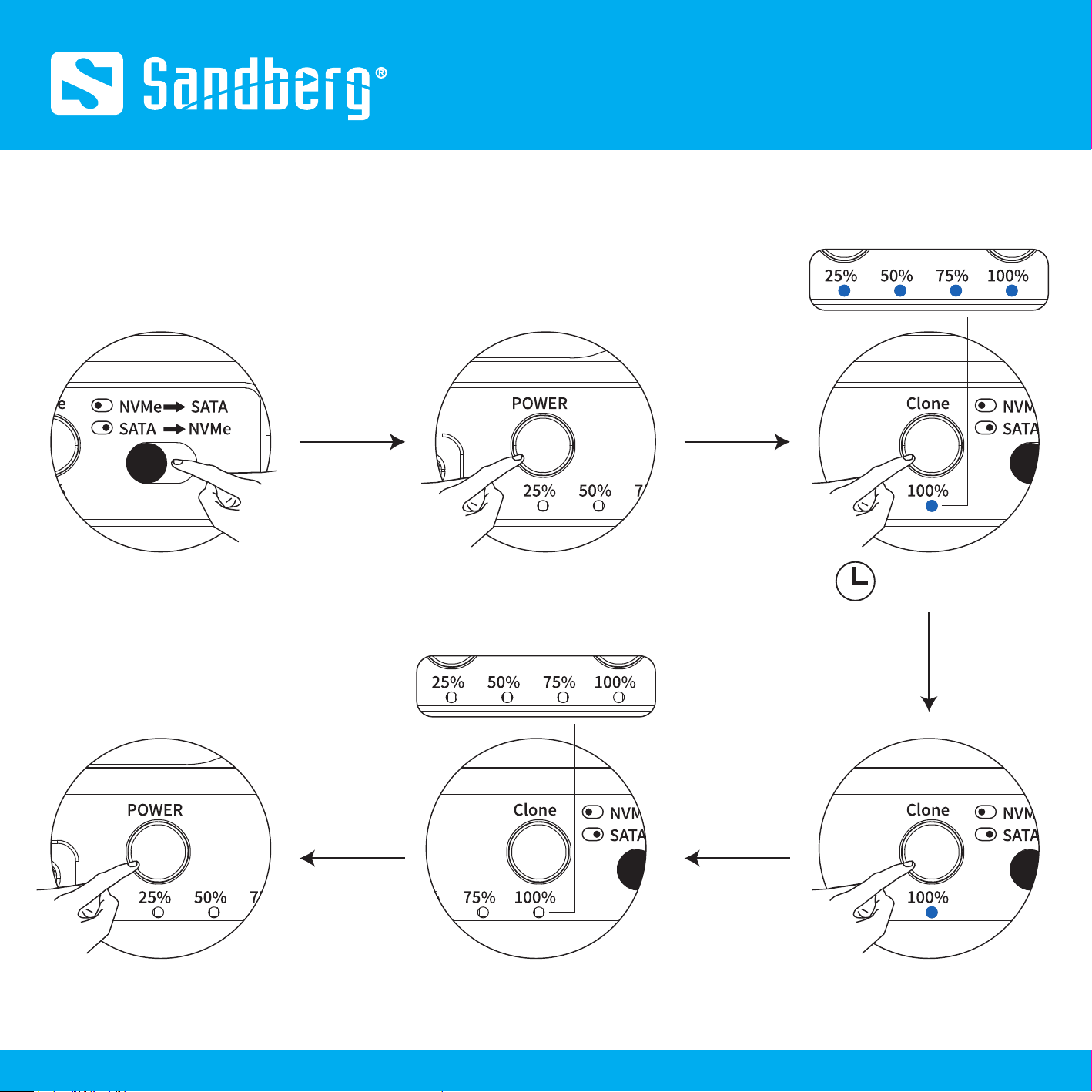

2.
• Clone NVMe SSD to SA
T
A HDD/SSD
USB
-C
Short press again for confirmation
Cloning is complete
USB
-C
3-5 seconds
USB
-C
USB
-C
7
USB
-C
USB
-C
USB
-C
USB
-C
Switch off the cloner before disconnecting HDD/SSD
Quick guide

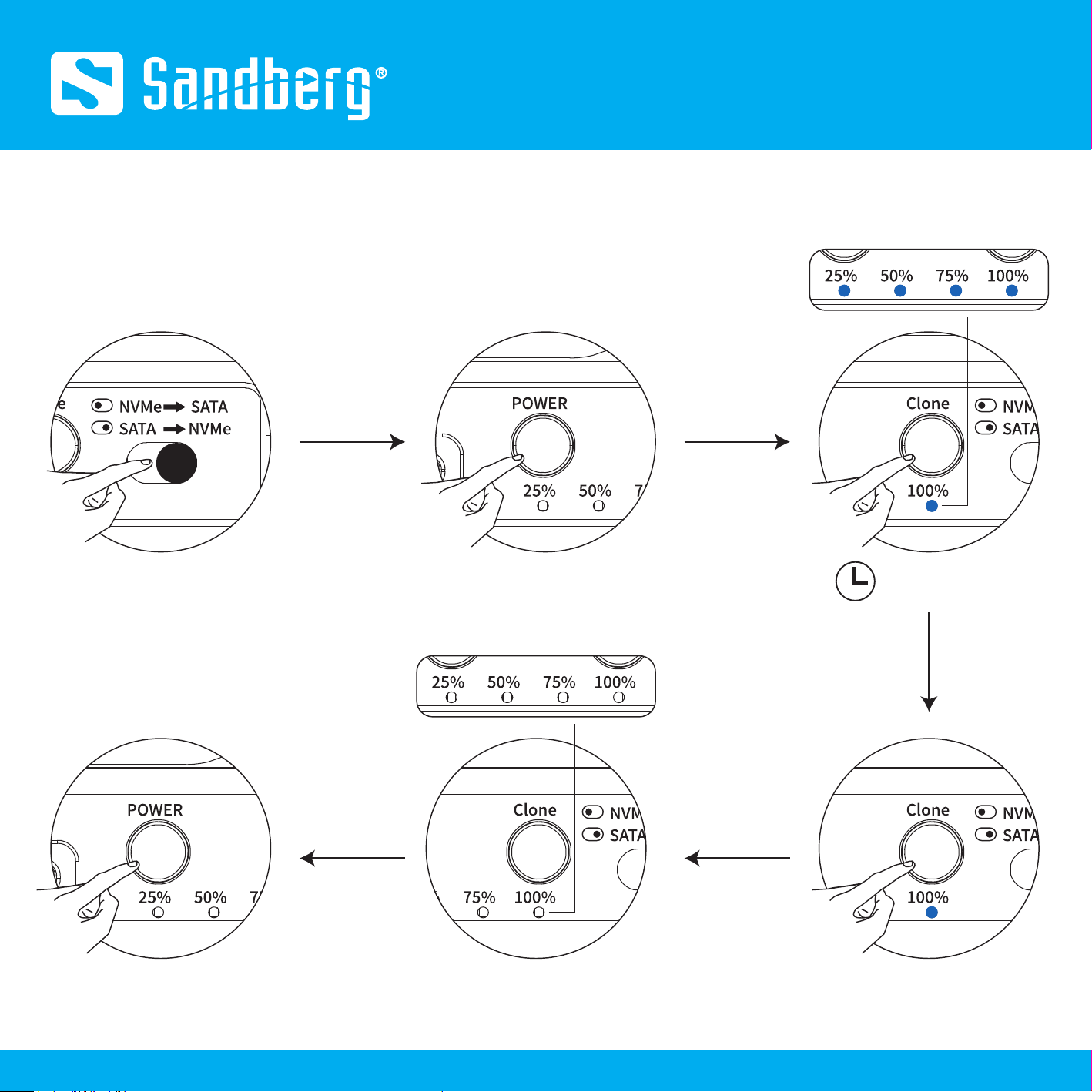

• Clone SA
T
A HDD/SSD to NVMe SSD
USB
-C
Short press again for confirmation
Cloning is complete
USB
-C
3-5 seconds
USB
-C
USB
-C
USB
-C
USB
-C
USB
-C
Switch off the cloner before disconnecting HDD/SSD
8
